Key features
Production-focused configuration.
- Fine cold-processing mark
- Desktop enclosed layout
- EZCAD2 software
- Water-cooled configuration
Laser Equipment / Laser Marking

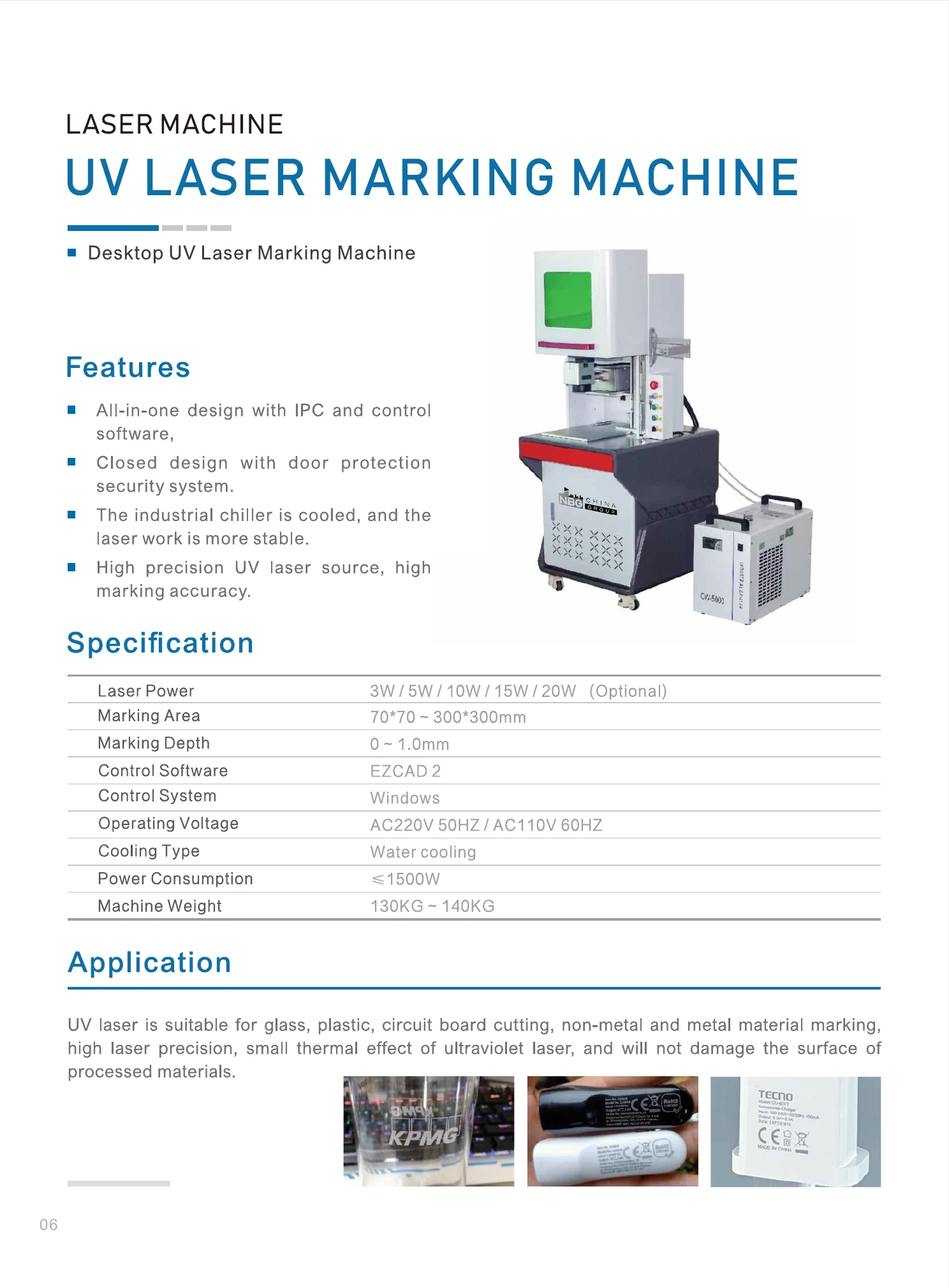

Desktop UV Laser Marking Machine
Industrial equipment specifications from the NBG Machines catalog, organized for application review and quotation.
Technical overview
Catalog specifications.
Options shown in the catalog must be confirmed against your workpiece, process, capacity, voltage and destination requirements.- Laser power
- 3 / 5 / 10 / 15 / 20 W
- Marking area
- 70×70–300×300 mm
- Marking depth
- 0–1.0 mm
- Power consumption
- ≤1500 W
- Weight
- 130–140 kg
Applications
Typical use cases.
- Plastics
- Electronic components
- Fine packaging marks
- Heat-sensitive materials
Share the material, workpiece dimensions, required process, expected throughput, power standard, destination and acceptance criteria. NBG Machines will confirm the applicable configuration rather than treating every catalog option as standard.
